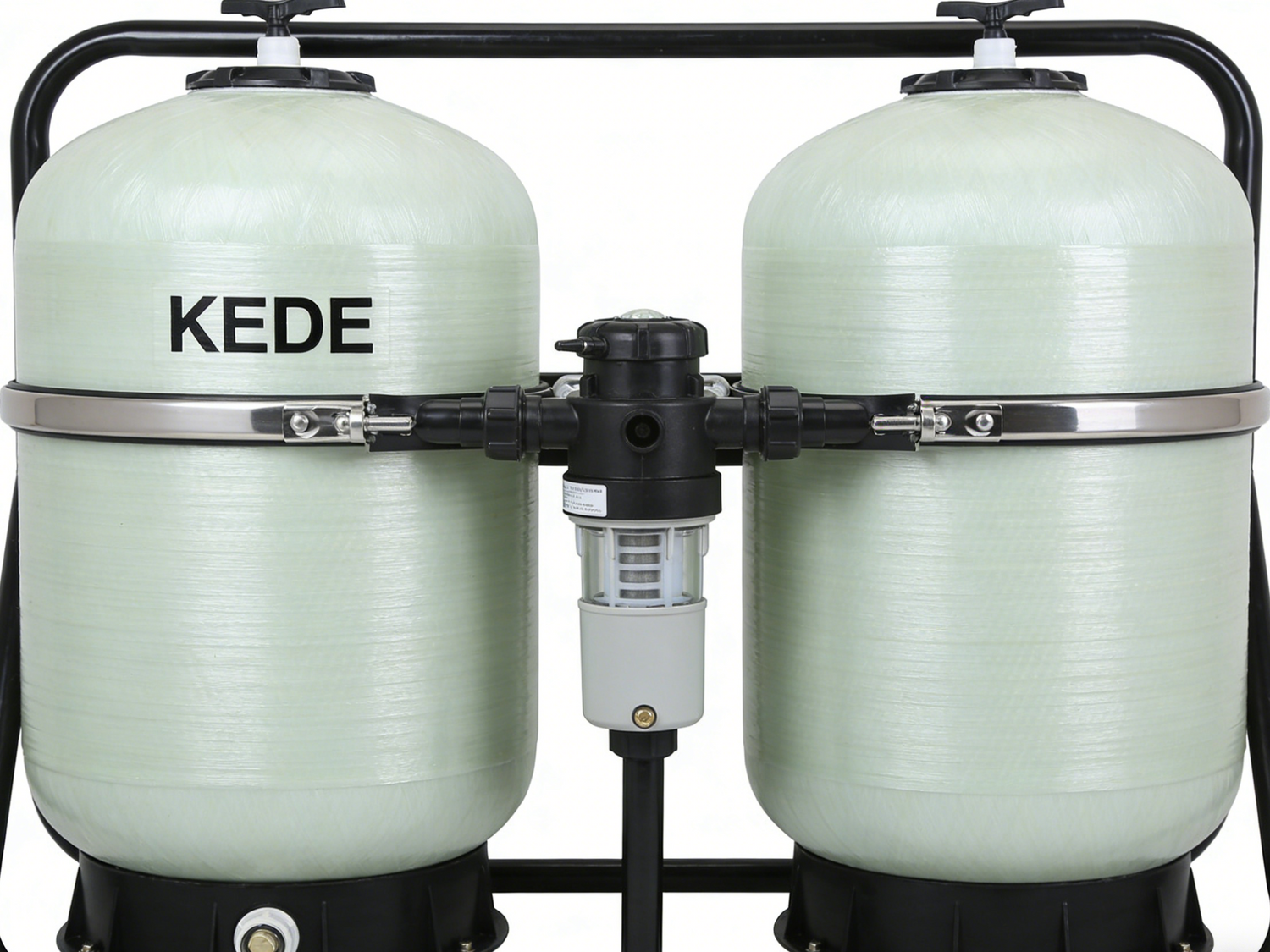

Softening Tank
A softener is a core piece of equipment that utilizes ion exchange technology to specifically remove calcium and magnesium hardness ions from water. Its primary objectives are to prevent scaling, ensure thermal energy efficiency, enhance product quality, and guarantee the safety of critical equipment. It serves as a fundamental support unit for achieving high-quality, high-efficiency, and low-energy-consumption operations in the textile dyeing industry.
Working Principle
The process involves passing raw water through a filter bed filled with sodium-type cation exchange resin. Sodium ions (Na⁺) on the resin undergo equivalent exchange with calcium ions (Ca²⁺) and magnesium ions (Mg²⁺) in the water, thereby reducing water hardness to extremely low levels.
Design & Operational Features
High Hardness Influent & System Selection
Calculate required resin volume based on raw water hardness, max hourly consumption, and operating time. Dual-tank parallel (one in use, one standby) or series configuration ensures continuous stable soft water supply.
High-Temperature Process Water
Select high-temperature resistant food-grade resin (≥120°C) for dyeing processes requiring hot soft water. Design resin tank and pipelines to accommodate thermal expansion and contraction.
Regeneration System Reliability
Use high-purity industrial salt (NaCl) to prepare saturated brine. Fully automated cycles based on time or cumulative water production. Regeneration wastewater must be directed to treatment system.
Water Quality Monitoring & Resin Maintenance
Online monitoring of residual hardness (≤0.03 mmol/L). Periodic testing of resin exchange capacity to prevent resin poisoning from iron ions or organic contamination.
Ion Exchange Softener Application Scenarios
Main Process Equipment Water Supply
Directly supplies water for dyeing processes — standard configuration for ensuring dyeing quality of high-end fabrics and sensitive color systems.
Steam Boiler & Heating System Feedwater
Mandatory requirement to prevent scaling and corrosion in boilers and steam pipelines, ensuring steam quality and production safety.
Core Pretreatment in Membrane Reuse Systems
Positioned before RO systems, forming comprehensive pretreatment chain with sand filters, activated carbon filters, and precision filters. The softener is specifically responsible for hardness control.
Makeup Water for Recirculating Cooling Systems
Used to replenish recirculating cooling water — controls system concentration cycles and prevents scaling in cooling tower fillings and heat exchangers.
Chemical Preparation Water
Provides high-purity soft water for preparing chemicals such as leveling agents and auxiliaries, ensuring their stable performance.
Core Advantages
01
Significant Economic Benefits
Saves substantial expenses on fuel (boilers), electricity, equipment maintenance, and production downtime caused by scaling. Investment payback period is short.
02
Enhances Product Quality & Competitiveness
Ensures dyeing process stability and reproducibility from water source, reducing defects and reprocessing, strengthening market competitiveness.
03
Ensures Production Safety & Continuity
Prevents critical thermal equipment failures such as pipe bursts, efficiency drops, and safety accidents caused by severe scaling, ensuring continuous production.
04
Mature Technology & High Automation
Classic water treatment technology with stable, reliable operation. Full automation significantly reduces manual operational intensity and error risk.
The softener serves as a critical conversion node bridging source water quality with production process quality, equipment operational efficiency, and system operating costs. It is not merely a water treatment unit but is regarded as an essential production process safeguard device. By eliminating the multiple adverse effects caused by water hardness, the softener provides indispensable foundational technical support for textile dyeing enterprises to achieve energy conservation, consumption reduction, quality improvement, efficiency enhancement, safe production, and green sustainable development. The quality of its operational performance is directly reflected in the enterprise's energy cost statements and product quality reports.
